Which WAT Carton Sealing Machine Should You Choose for Different SKUs and Sizes?
You've probably seen it on your packaging line: the carton sealing machine finishes one carton type, the next SKU arrives at the feed inlet, and the line stops. A worker walks over, loosens the guide rails, adjusts the width, resets the height, tightens everything back, runs a test carton, and adjusts again. Several minutes lost per switchover. Multiply that by the number of changeovers a day, and an hour's worth of sealing output is gone.
In all of this, the worker is fine, the tape is fine, and the carton is fine. The problem is the machine: it was designed to run one carton type all day, and as your order mix grows more varied, that setup stops working.
Before choosing a machine, one question comes first: why water-activated tape?
Traditional pressure-sensitive tape relies on surface contact. The adhesive grips the outer linerboard of the corrugated board through initial tack. But the bond stays on the surface, and under continuous load or temperature changes, surface adhesion is the first thing to fail.
Water-activated tape bonds differently. Its starch adhesive penetrates the corrugated fibers and cures within the substrate. Once set, tape and carton are structurally integrated—they cannot be peeled apart without tearing a layer of board. For a modern packaging line, this fiber-level bond removes the weakest point in carton sealing. Water-activated tape also meets current environmental regulations, is fully recyclable with the carton, and provides tamper-evident closure. Fiber-reinforced water-activated tape adds tensile strength for heavier loads.
This matters for machine selection: a WAT sealer integrates a water-activation system into the tape path. The machine wets the tape, applies it, and presses down the flaps—a different mechanical process from pressing a dry pressure-sensitive strip onto a carton.
JL offers high-performance WAT carton sealing machines tailored to different operational needs. The table below compares the three models in the series.
| Item | KN-1717U Semi-automatic |
KN-1721R Fully-automatic |
KN-2626U Semi-automatic |
|---|---|---|---|
| Case Sealing Speed | 8-13 cases/min (Depending on case size and quality) |
8-13 cases/min (Depending on case size and quality) |
8-13 cases/min (Depending on case size and quality) |
| Max Carton Size | Up to 43 × 53 cm | Up to 43 × 53 cm | Up to 66 × 66 cm |
| Max Load | 38 kg | 38 kg | 60 kg |
| Size Adjustment | Manual | Automatic self-adaptation | Manual |
| Changeover Downtime | Minutes per changeover | Near zero—machine adapts automatically | Minutes per changeover |
| Power | 1.1 kW | 1.5 kW | 1.1 kW |
| Water Tank | Dual 2L tanks | Dual 2L tanks | Dual 2L tanks |
| Tape Roll Capacity | Up to 500 mm dia. (approx. 1,300 m) |
Up to 500 mm dia. (approx. 1,300 m) |
Up to 500 mm dia. (approx. 1,300 m) |
| Machine Dimension (L × W × H) |
93" × 43.9" × 65" (236 × 112 × 165 cm) |
93" × 43.9" × 65" (236 × 112 × 165 cm) |
128" × 53" × 70" (326 × 135 × 179 cm) |
| Best For | Standard semi-automatic model for regular-sized cartons. Cost-effective for single-size or low-frequency changeover scenarios. | High-end fully-automatic model with touch control interface and side-belt drive. Ideal for mixed-size production lines with frequent changeovers. | Heavy-duty model for bulky and heavy cargo, supporting the largest carton dimensions and highest weight capacity in the series. |

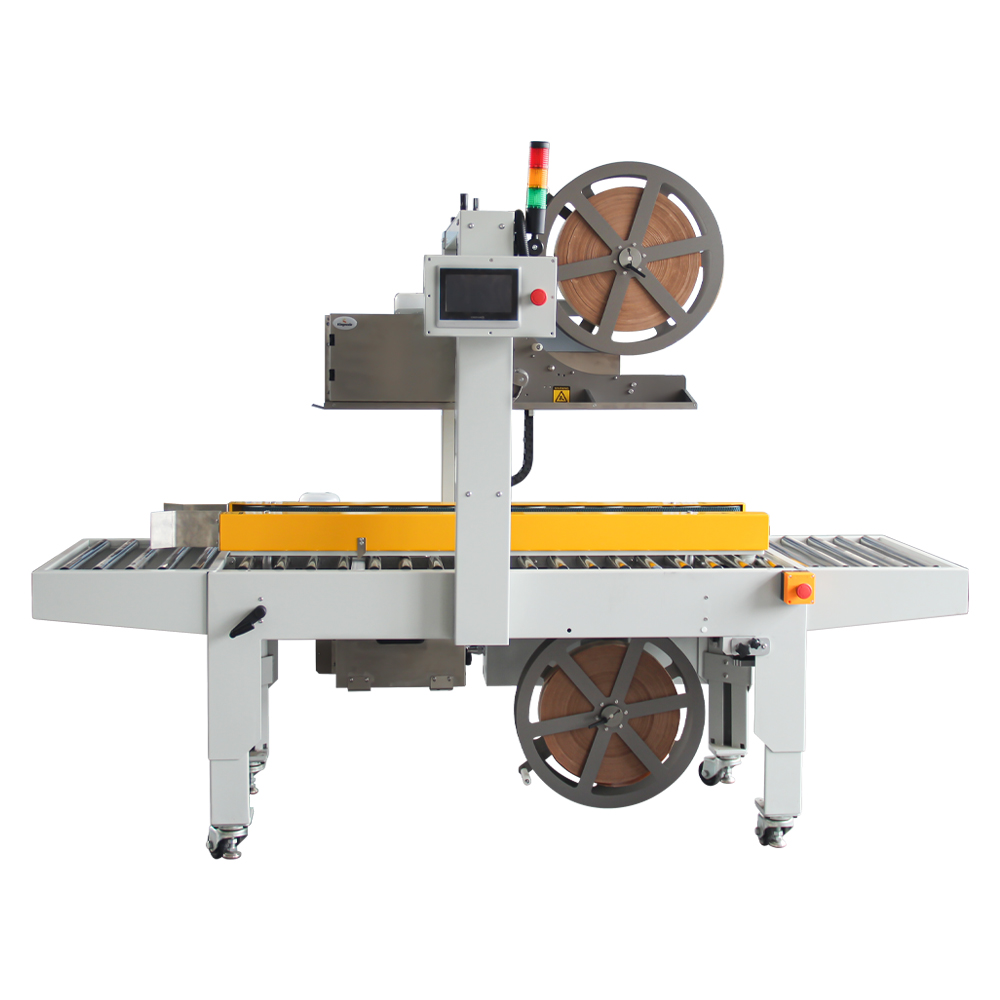

KN-1717U — Standard Semi-Automatic WAT Case SealerKey Feature: Cost-effective reliability; Manual adjustment for standard cartons.
The KN-1717U is the workhorse of the series, designed for consistent, high-quality sealing of standard-sized cartons. With a compact footprint and efficient 1.1 kW power consumption, it offers the best value for lines with stable carton sizes. VIEW KN-1717U SPECS → |
 |

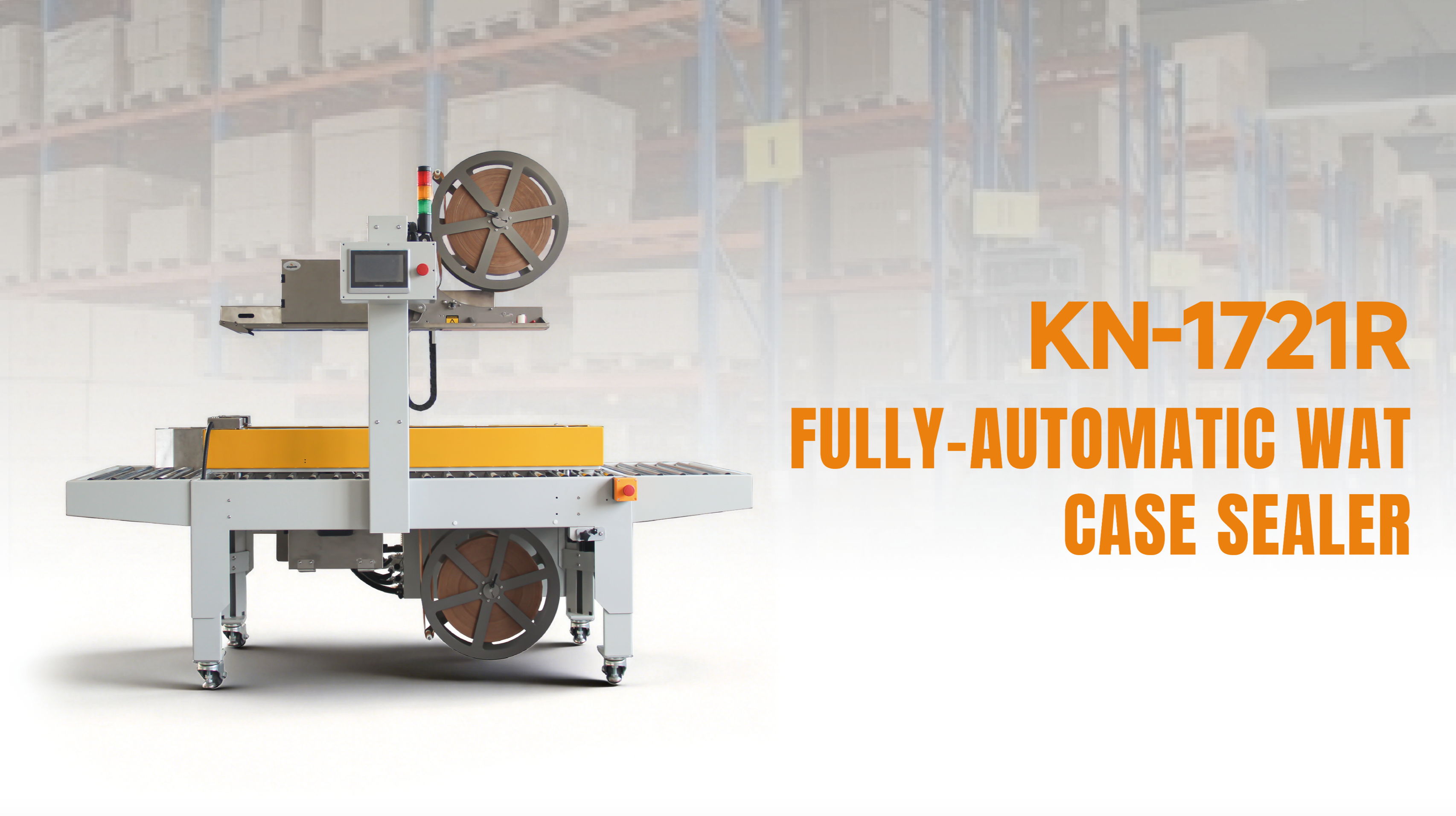

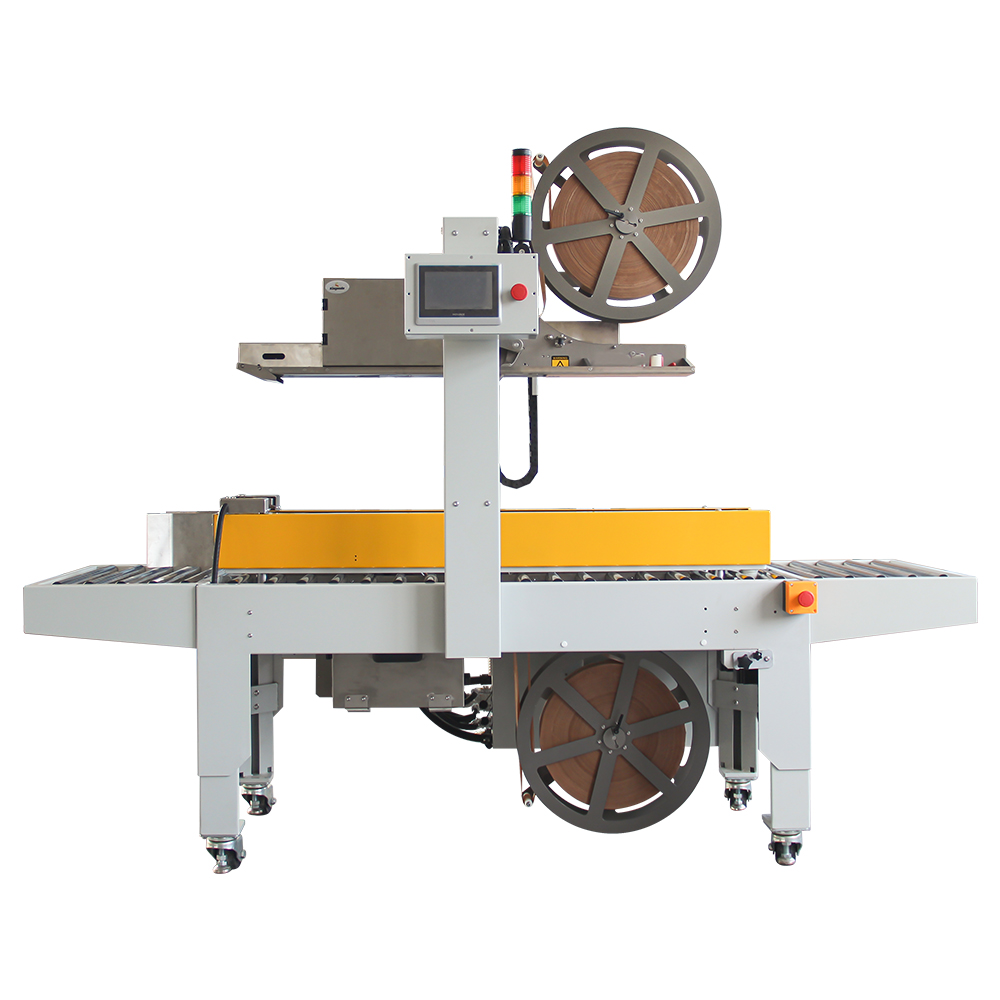

KN-1721R — High Speed Fully-Automatic WAT Case SealerKey Feature: Automatically adapts to box dimensions; Touch control interface.
The KN-1721R is our premier fully-automatic solution, engineered for operations that require rapid changeovers without manual intervention. Its touch control interface tracks sealed box counts and allows convenient parameter settings. VIEW KN-1721R SPECS → |
 |

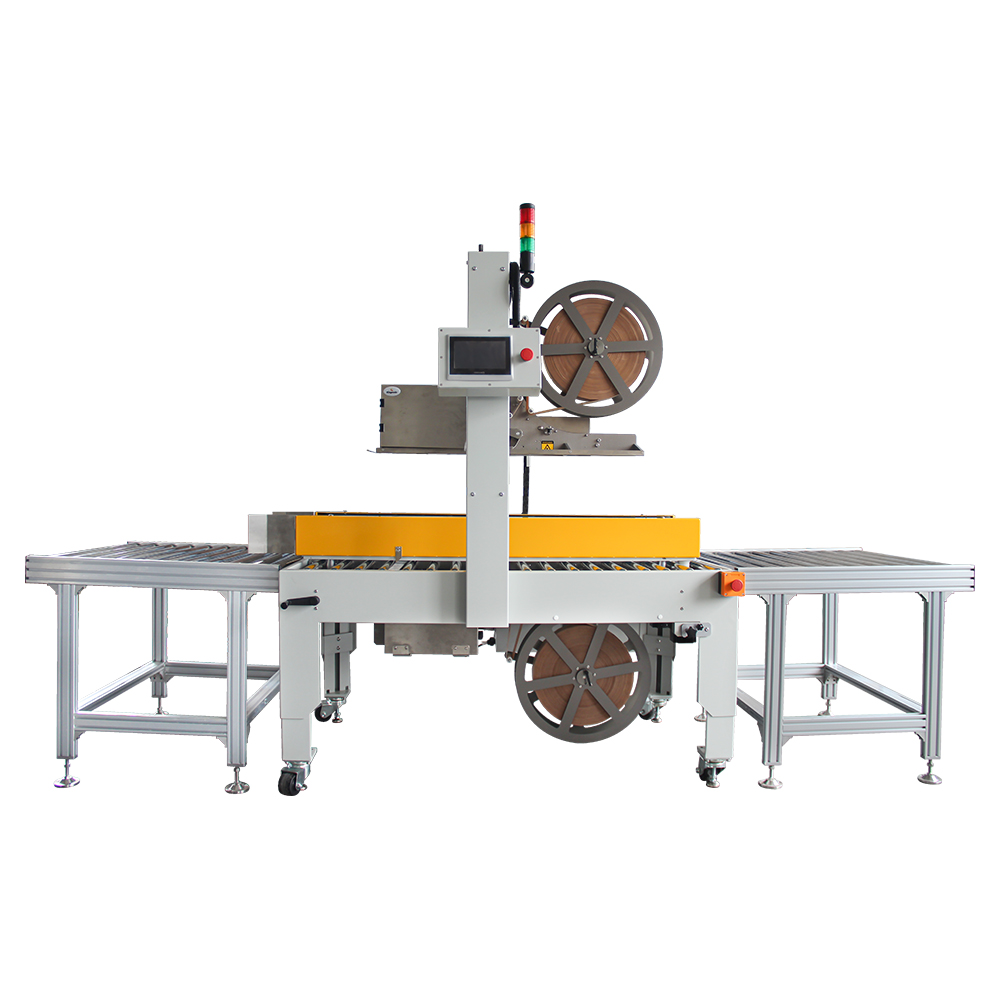

KN-2626U — Heavy Duty Semi-Automatic WAT Case SealerKey Feature: Extended size capacity (up to 66 × 66 cm); Max load 60 kg.
Built for large-scale operations, the KN-2626U is the robust choice for bulky and heavy cartons. With a maximum handling weight of 60 kg and carton dimensions up to 660 mm × 660 mm, it outperforms standard sealers. VIEW KN-2626U SPECS → |
 |
Different box mixes place different demands on your sealer. Use this quick mapping to shortlist the right model:
| Your Scenario | Recommended Model | Why |
|---|---|---|
| Mixed SKUs with frequent size changeovers (e-commerce, 3PL, contract packing) | KN-1721R | Automatic size adaptation removes manual changeover downtime, keeping mixed-size lines running at a steady 8-13 cases/min. |
| Heavy or oversized cartons (up to 60 kg or 66 × 66 cm) | KN-2626U | Extended size capacity and heavy-duty construction handle bulky cargo that standard sealers cannot. |
| Single or stable carton sizes, budget-focused lines | KN-1717U | Reliable manual adjustment and low running cost deliver the best value when changeovers are rare. |
The right machine depends on your line's specific priorities. Use these questions to narrow it down:
Whether your line runs standard parcels, heavy industrial cartons, or requires fully automated handling, the KN WAT case sealer series eliminates bottlenecks and provides a machine tailored to your specific throughput and size requirements.
The KN-1717U, KN-1721R, and KN-2626U all deliver the permanent, fiber-tearing WAT bond that keeps cartons closed from the packing line to the final destination. The question isn't whether WAT is the right seal. It's which machine—standard semi-auto, heavy-duty, or fully automatic—best fits your box mix and operational priorities.
